      Light Sources>> Near infrared Sources>>bluLoop Multi-LED Light Source

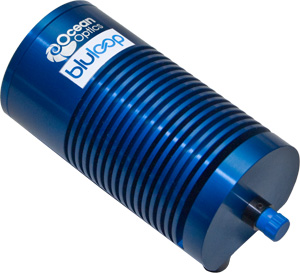

      Our new bluLoop Light Source is a small but amazing LED source that is the perfect companion for measuring color and more.

      bluLoop features four tunable LEDs that allow unparalleled balancing of spectral output. It delivers higher reliability of estimated color values, has low heat consumption and has a longer lifetime than typical halogen sources.

      bluLoop also has good response and favorable spectral characteristics in the Visible range when compared with tungsten halogen sources.

      Typical Applications

      • General purpose VIS-NIR spectroscopy
      • Color and reflectance measurements
      • Applications requiring balanced VIS output

      Features

      • 4 individual tunable LEDs allow balancing of spectral output
      • Reduced dynamic spectral output
      • Higher reliability of estimated color values
      • Low heat consumption
      • LED lifetime higher than halogen sources

      At a Glance

      Dimensions (H x L x D): 62 x 60 x 150
      Weight (kg): .0.5
      Power consumption: up to 12 W
      Output to bulb: Blue lmax 500 mA
      Cyan lmax 700 mA
      White LED 65000 lmax 700 mA
      White LED 4500 lmax 700 mA
      Wavelength range: 395-750 nm
      Stability: 0.25%
      Drift: <0.3% per hour
      Time to stabilize: 15 minutes
      Bulb lifetime: >10,000 hours
      Temperature: 5-35 °C
      Humidity: 5-95% at 40 °C

      LEDs Used

      Type Wavelength in nm Rel Intensity in Cts/ms @lmax in mA
      Blue 420 2368 500
      Cyan 505 2158 700
      Cold White 454 567 700
      Warm White 570 842 700



      Comparison of bluLoop with Visible Sources
